CCE-ODF300 Orally disintegrating film making and packing machine

Description
This machine uses split module construction.
During transport and cleaning, the module can be removed separately for easy operation.
The main motor using frequency control, according to the length of the trip and the size of the product to set the corresponding number of blanking.
Adopts manipulator holding the traction mechanism, smooth operation, accurate synchronization, in the range of any adjustable, that is: strip size could be designed in the range arbitrarily.
All parts in contact with the material are made of stainless steel and non-toxic materials and meet "GMP" requirements.
Slitting and crosscutting integrated, the material can be precisely divided into a single sheet-like products, and then use the sucker to accurately locate and move the material to the packaging film, laminated, heat sealing, punching, and then output, whole process achieves the integration of product line packaging.
Application:
The ODF Machine is specialized in making liquid materials into thin film. It can be used to make quick-dissolvable oral films, transfilms, and mouth freshener strips, having wide application range in pharmaceutical field, food industry and etc.

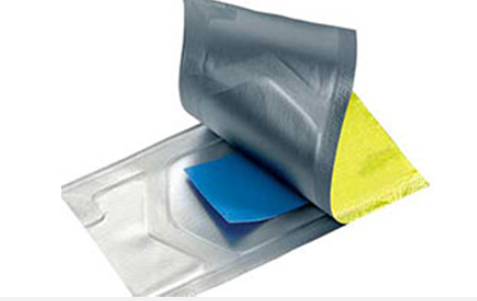

The machine is ideal for packing film strips into pouch, such as oral dissolving films, mint strips, adhesive patch, etc,, having advantages of safe take-away medicine, easy to apply, handle and store,dampness proof, perfect sealing design, strong shading, flexible bag design in shape,size and color.

Main Technical Parameters for film making machine:

Items	Parameters
Max casting width	360mm
Roll width of film	400mm
Running Speed	0.02m‐1.5m/min (depends on formula andprocess technology)
Unwinding diameter	≤φ350mm
Winding diameter	≤350mm
Method of heat & dry	Heating by external stainless steel heater, hot air circulation in centrifugal fan
Temperature control	30~80℃±2℃
Edge of reeling	±3.0mm
Power	16Kw
Overall dimension	L×W×H:2980*1540*1900mm

Applicable specifications for packaging materials:

Roll packaging material	PET / aluminum / PE composite film
Thickness	0.02‐0.05
Reel diameter	70‐76mm
Outer diameter of roll	250mm
