CCE-400J Automatic Vertical Paste Packing Machine

Category: Vertical packing machine

Tel: +86-13235775707

Email: [email protected]

Professional design,simple structure.
Piston pump design for sauce and liquid accurate filling purpose
PLC Programme controlled by stepping motor ,convenient and accurate to set bag length.
Photoelectric sensor for film,make the bag same length and beautiful looking.

Application:

The machine is suitable for automatic packing sauce & liquid & paste such as ketchup,seasoning sauce,peanut sauce,,fruit sauce,hot spot sauce,washing detergent.



Main Technical Parameters:

Weighing Range

      5-200g

Working Speed

                 15-50bags/min

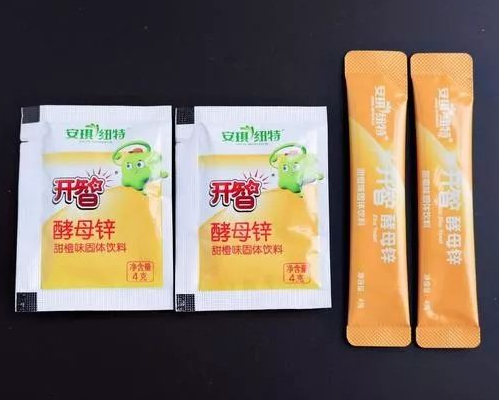

Bag pattern

                  Back sealing,3 side sealing

Bag size

   W:30-150mm L:50-180mm

Packing material

OPP/CPP PET/PE PET-AL/PE

Air consumption

0.6m3/min 0.8Mpa

Power supply

AC220V 50Hz/60Hz 2.5kw

Film width

 60-350mm

Film thickness

0.04-0.08mm

Machine Weight

 350kgs

Dimension

1200*900*1800mm

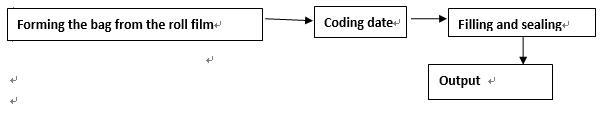

Working Process
