CCE6-200C Liquid & Paste Packaging Machine

CCE6-200 Liquid & Paste Packing Machine Description
 1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
5. The part where touch to the materials is made of stainless steel and according with the request of GMP.
Application:

This automatic packaging machine unit is specialized in liquid and paste such as juice,ketchup,béchamel,capsicum paste,liquid soap and edible oil etc.This machine includes the rotary packing machine can liquid & paste filler.



Main Technical Parameters:

Working position	Six-working position
Bag material	Laminated film/pe/pp
Bag pattern	Stand-up with zipper & spout,stand-up ,flat bag,
Max filling weight	10-1000ml
Filling accuracy	0.5-1%
Bag size	W:100-200mm L:100-350mm (could be customized)
Speed	10-60bags/min
Voltage	380v 3phase 50/60hz
Total power	5.5KW
Compress air	0.6m3/min

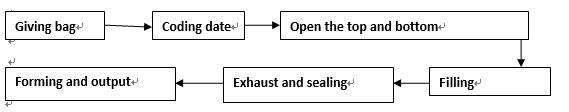

Working Process

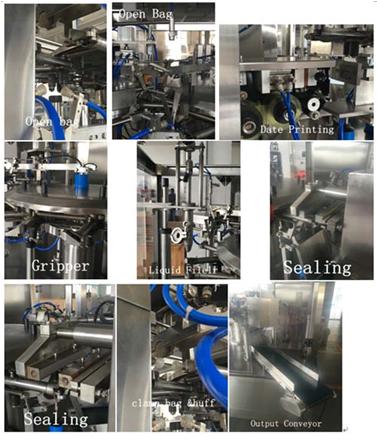

Details of machine parts
