CCE-P120 Weighing Packaging Machine

CCE-P120 Weighing Packaging Machine Description
This equipment is our company in the packaging machine long-term practice on the basis of abandoning the original traditional semi-automatic mode,and independent research and development with more than 10 national patents weighing (robot)packaging machine,only need a key input,to achieve the packaging machine really intelligent and unmanned. It is an epoch-making product.

Application:
It is suitable for the packaging of the medicines ,health care products and other powders .

Main Technical Parameters:

Packing Accuracy	≤0.2g
Weighing Accuracy	≤0.1g
Weighing Range	1-5g
Working Speed	30-35bags/min
Bag pattern	Back sealing
Bag size	W:20-100mm L:100-200mm
Air consumption	0.3-0.6m3/min
Voltage	220V 50Hz
Total power	1.5KW
Machine Weight	300kgs
Dimension	1200*900*2600mm

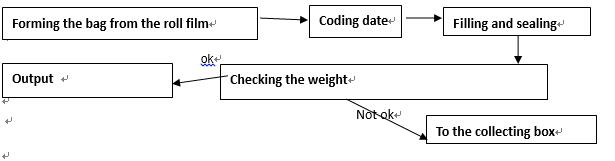

Working Process

Details of machine parts
