CCE-420 Automatic Vertical Packing Machine

Imported PLC control system,simple-operating,visual touch screen.
Servo film feeding system,correct register,sealing and cutting position adopt automatic correction device,high automation
Intelligent temperature controller is used,correct temperature control,ensure nice,smooth seal.
Perfect automatic alarming protective function,reduce the consumption up to the lowest.
When the machine is combined with metering equipments,full packaging process including automatic feeding.metering,bag filling,date printing and automatic counting is completed.

Application:
The machine is suitable for automatic packing particle materials like all kinds of sweets,chocolate,biscuits,peanuts,nuts,rice,millet,grain,seeds,pistachio,coffee beans,lima beans,sugar,salt and desiccant.

Main Technical Parameters:

Weighing Range	100-1500g
Working Speed	15-70bags/min
Bag pattern	Back sealing,3 side sealing
Bag size	W:80-200mm L:80-300mm
Packing material	OPP/CPP PET/PE PET-AL/PE
Air consumption	0.36m3/min 0.6Mpa
Power supply	AC220V 50Hz/60Hz 3.5kw
Film width	180-420mm
Film thickness	0.04-0.08mm
Machine Weight	550kgs
Dimension	1750*1050*2600mm

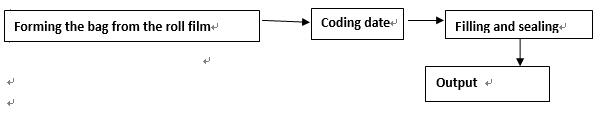

Working Process
